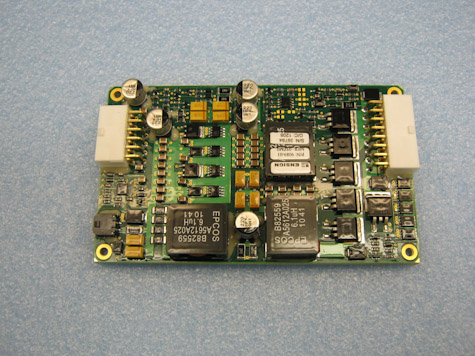

Ensign Model Number: 9093-01

Category: DC to DC

General Specifications:

Input & Enable:

Nominal Input Voltage………………………………………………… 28.0 VDC (±0.5 VDC)

Low Line Input Voltage…………………………………………… 16.0 VDC (-0.5, +0 VDC)

Transient Low Line Input Voltage……………………….. 15.0 VDC (-0.5, +0 VDC)

High Line Input Voltage…………………………………………… 32.0 VDC (-0, +0.5 VDC)

Transient High Line Input Voltage…………………… 100.0 VDC (-0, +0.5 VDC)

Output Voltages:

Output…………………………………………………………. 16.5 VDC @ 15A (+0.2, -0)A

Table 1:

Output

Output

Voltage

Output Current

Voltage

Ripple

20 MHz BW

Min.

Max.

Min.

Max.

1

16.5 VDC

0A

15A

15.675V

17.325V

495 mVpp
