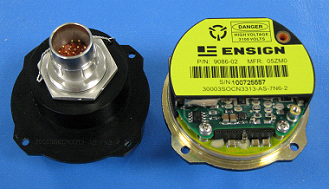

Ensign Model Number: 9086-02

Category: DC to DC

Overall Size:  2.5” Dia X 2.75” Tall

General Specifications:

Input Power (19-34.5 VDC )

Nominal Input Voltage   …………………………………………….  15 VDC

Low Line Input Voltage   ……………………………………………  13.9 VDC

High Line Input Voltage   ……………………………………………  15.5 VDC

Output Voltages:

The nominal output voltage and rated output current of the power supply are specified in Table 1.

Outputs

Output

Voltage

Output Load

Voltage

Ripple

20 MHz BW

Nom. Max. Min. Max. Maximum
1 1900 – 3100 VDC 100 Meg 100 Meg 1800V 3200V 275 mVpp
2 +3.3 VDC 1.5 A 1.8 A 3.135V 3.465V 50 mVpp
3 +5.0 VDC 163 mA 300 mA 4.75V 5.25V 25 mVpp
4 -5.2 VDC 65mA 120 mA 4.94V 5.46V 25 mVpp

Design Application:      Helicopter Threat Warning System
