Ensign Model Number: 9006-10

Category: DC to DC

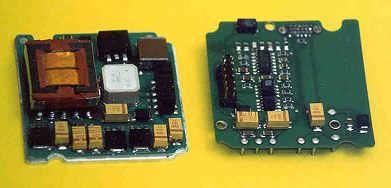

Overall Size: 2 Board Construction  2” X 2” X1”

General Specifications:

Input Voltage:

Low Line…………………………………………………………………………………………………… 22.0 VDC

Nominal……………………………………………………………………………………………………. 28.0 VDC

High Line………………………………………………………………………………………………….. 32.0 VDC

Output Voltages:

The nominal output voltage and rated output current of the power supply are specified in Table 1.

Nominal Vout

Full Load

Minimum Load

BLK 5.00 ± .20 VDC

2.50 ± .10 ADC (2 Ohms)

1.25 ± .05 ADC (4 Ohms)

BLK 23.0 ± 3.0 VDC

1.20 ± .17 ADC (19 Ohms)

.300 ± .040 ADC (77 Ohms)

RED 5.10 ± .40 VDC

1.00 ± .10 ADC (5 Ohms)

.390 ± .030 ADC (13 Ohms)

Design Application: Power for monitoring of Missiles in Space
