Welcome to ENSIGNPOWER Custom Power Supplies

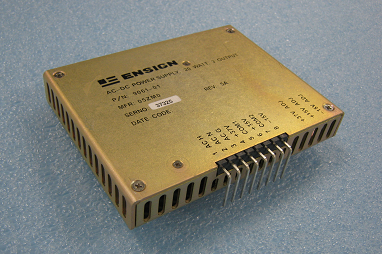

Ensign Model Number: 9061-01

Category: AC to DC

Overall Size:  5” X 3.5” X 0.75”

General Specifications:

Input 1 ( 1 Phase, 115 VAC Line to Neutral, 47 – 440Hz )

Nominal Input Voltage ………………………………… 115VAC (±1 VAC), 60Hz

Low Line Input Voltage ………………………………… 85VAC (-1, +0 VAC), 45Hz

High Line Input Voltage …………………………………132VAC (-0, +1 VAC), 65Hz

Output Voltages:

Ensign

Dash

No.

Volts

(Adj. ±5%)

Amps

Max.

RMS

Ripple

Max P-P Ripple

Max.

Line

Reg.

Max.

Load

Reg.

Min

Load



I-Limit @

Nominal

Input







-01

Output#1               P1-3, 4

37.0

0.35

25mV

50mV

92.5mV

370mV

0mA

0.45-.75A

Output #2               P1-5, 6

15.0

0.35

25mV

75mV

37.5mV

150mV

0mA

0.45-.75A

Output #3               P1-7, 6

-15.0

0.35

25mV

75mV

37.5mV

150mV

0mA

0.45-.75A

Design Application:      Nuclear Power Plant Safety Monitoring
