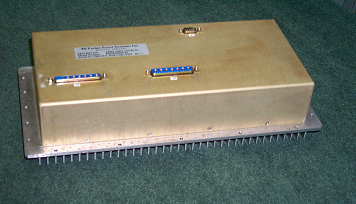

Ensign Model Number: 9058-01 Category:

Category: AC to DC

Overall Size:  14” X 8” X 4”

General Specifications:

Input 1 ( 1 Phase, 115 VAC Line to Neutral, 47 – 440Hz )

Nominal Input Voltage …………………………………………………  115 VAC (±1 VAC)

Low Line Input Voltage ………………………………………….  103.5 VAC (-1, +0 VAC)

High Line Input Voltage ……………………………………………  126.5 VAC (-0, +1 VAC)

Input 2 ( 1 Phase, 230 VAC Line to Neutral, 47 – 63Hz )

Nominal Input Voltage ……………………………………………………  230 VAC (±2 VAC)

Low Line Input Voltage ……………………………………………….  207 VAC (-2, +0 VAC)

High Line Input Voltage ………………………………………………  253 VAC (-0, +2 VAC)

Output Voltages:

The nominal buy clonazepam online output voltage, output current, and performance specifications of the power supplies are specified in Table 1.  Nominal full load efficiency > 70%. Input power factor at 115 VAC and 60 Hz > 0.98

Ensign

Dash

No.

Nom. Output

Volts         Amps

±1%         +20/-0%

Max.

P-P

Ripple

Max.

Line

Reg.

Max.

Load

Reg.

Min

Load

Reg.

I-Limit @

Nominal

Input











-01

Output#1                      J3-A1, A2, A3—A4, A5, A6 (Rtn)

3.3V

40

50mV

6.6mV

6.6mV

8.0A

40.8 – 80.0

Output #2                      J2-A1, A2, A3—A5, A6, A7 (Rtn)

5.00

30

50mV

10mV

10mV

6.0A

30.6 – 60.0

Output #3                      J2-11, 12—13, 14 (Rtn)

24.00

8.0

200mV

48mV

48mV

1.6A

8.72 – 16.0

Output #4                      J2-3, 4—5, 6 (Rtn)

12.00

10.0

50mV

60mV

60mV

2.0A

10.2 – 30.0

Output #5                      J2-7, 8—9, 10 (Rtn)

-12.00

6.0

50mV

60mV

60mV

1.6A

6.12 – 12.0

Design ApplicationAircraft Computer System
