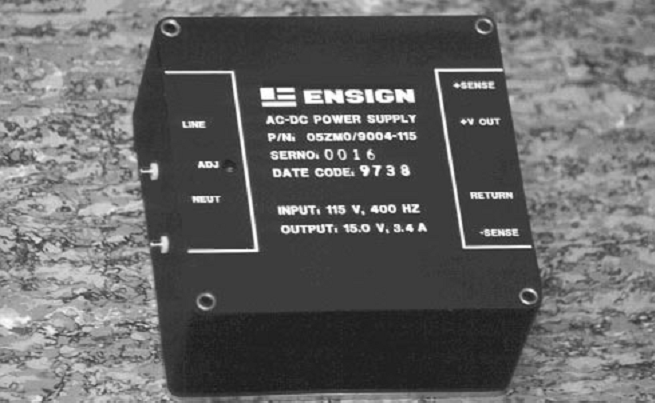

Category: AC to DC
Overall Size: 4” X 4” X 2”
General Specifications:
Input: ( 1 Phase, Line to Neutral, 400Hz )
Nominal Input Voltage …………………………………………………………. 115 VAC (±1 VAC)
Low Line Input Voltage……………………..……………………….. 103.5 VAC (-1, +0 VAC)
High Line Input Volt………………………………………………………. 126.5 VAC (-0, +1 VAC)
The nominal output voltage output current and performance specifications of the power supplies are specified in Table 1.
|
Ensign Dash No. |
Nom. Output Volts Amps ±1% +2/-0% |
Adj. Range F.L. Output Nom. Input |
Max. Line Reg. |
Max. Load Reg. |
Max. P-P Ripple |
Efficiency Nom. Input F.L. Out |
I-Limit Nominal Input |
|
|
-105 |
5.00 |
10.00 |
4.75 – 5.25 |
10mV |
25mV |
100mV |
63% Min. |
11.50 – 15.00 A |
|
-112 |
12.00 |
4.20 |
11.40 – 12.60 |
24mV |
60mV |
240mV |
73% Min. |
4.83 – 6.30 A |
|
-115 |
15.00 |
3.40 |
14.25 – 15.75 |
30mV |
75mV |
300mV |
74% Min. |
3.91 – 5.10 A |
|
-128 |
28.00 |
1.80 |
26.6 – 29.4 |
56mV |
140mV |
560mV |
75% Min. |
2.07 – 2.70A |
