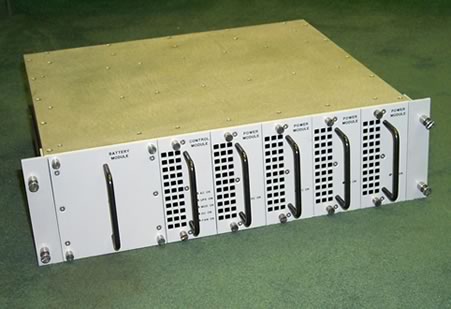

Ensign Model Number: 9023-01 Category: AC to AC

Category: AC to AC

General Specifications:

INPUT: ( 1 Phase, Line to Neutral, 60Hz )

Nominal Input Voltage …………………………………………….  115 VAC (±1 VAC)

Low Line Input Voltage ……………………….  103.5 VAC (-1, +0 VAC)

High Line Input Voltage ………………………  126.5 VAC (-0, +1 VAC)

Output

The nominal output voltage, output current, and performance specifications of the power supply are specified in Table 1.



Ensign

Dash

No.



Nom. Output

 Volts          Amps

  ±1%         +2/-0%



80%

Load

Amps



Max.

P-P

Ripple



Max

Line

Reg



Max

Load

Reg



I-Limit @

Nominal Input

Amps







01-

Output #1
5.00 158.0 127 50mV 25mV 75mV 173-190
Output #2
+12.00 14.0 11.2 50mV 100mV 150mV 15.4-16.8
Output #3
-12.00 7.00 5.6 50mV 100mV 150mV 7.7-11.2
